Battery

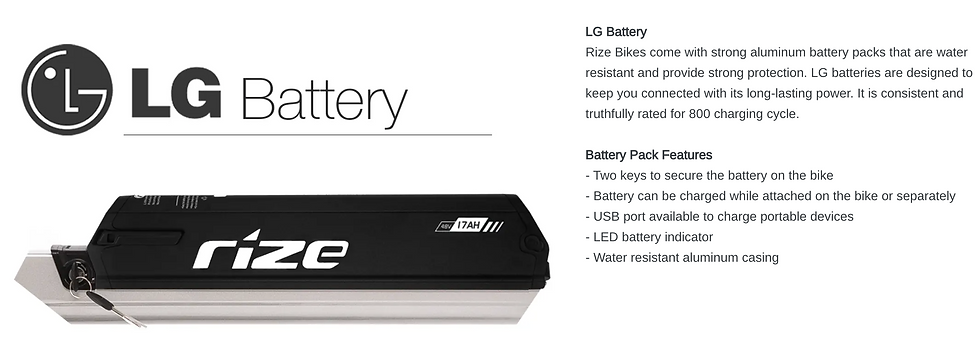

LG 48V Lithium-Ion 13Ah, 624Wh
*LG 48V Lithium-Ion 17Ah, 816Wh (optional)

Estimated Range
13Ah (25 ~ 45+ miles)
17Ah (38 ~ 55+ miles)

Charging Time
4 - 6 hours

Charging Cycle
800
Motor
Bafang 500 Watt, 65 N.m

Top Speed
20 mph (default)

ConfigurationClass
1, 2, or 3 (configurable)

Brakes
Tektro Mechanical Disc Brakes 180mm
*Tektro Hydraulic Disc Brakes 180mm (optional)

Brakes Levers
Include Safety Motor Inhibitors
Frame Size
17"

Tires
Kenda K-Shield Puncture Resistance
26" x 2.10"

Weight
26kg / 57 lbs (Including Battery)

Load Capacity
125kg (275 lbs)
Frame
6061 Aluminum Alloy

Gear
7-Speed Shimano Acera (11-32T)

Shifter
Shimano Rapid Fire

Crankset
42T Dual Guard
*42T Single Guard (torque sensor)

Fork
SR Suntour with Lockout

Rim
Double Wall

Pedals
Wellgo Aluminum Platform

Seat Post
Promax 350mm x 27.2mm

Saddle
Coil Spring Cushion Seat with Gel Padding


Throttle
100% Power Assisted on Demand

Pedal Assist Level
Choose between 3, 5, 7, 9 levels (default 7)

Pedal Assist Sensor
Cadence 12 Magnets Sealed
*Torque Sensor (optional)
